Deskripsi

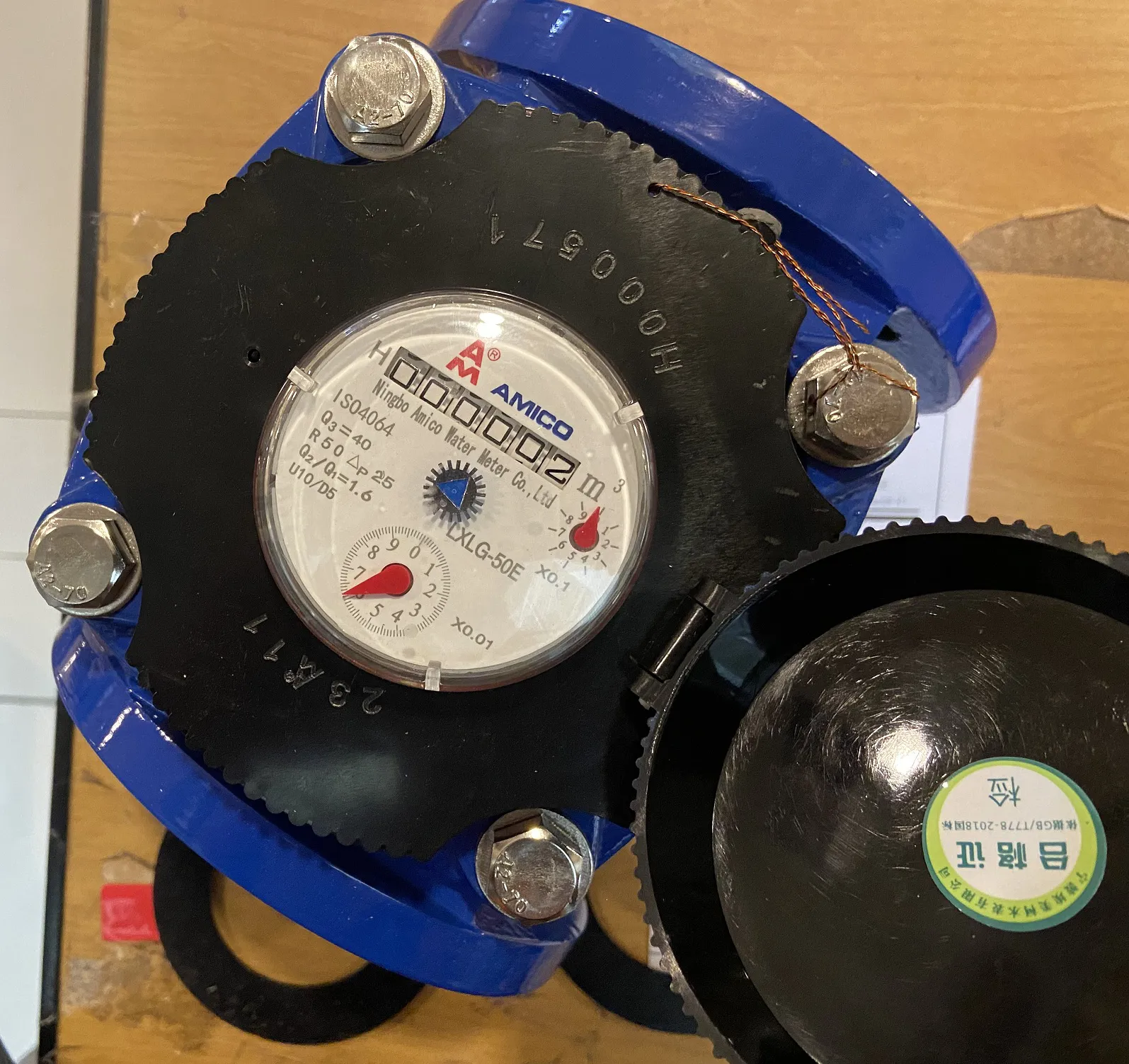

Water Meter / Meteran Air Bersih 2 Inchi (DN50)
Brand : Amico
Type : LXLG-50E
Connection : Flange PN10, DN50
Aplication : Clean Water
Body Material : Cast Iron
Length F to F : 20 cm
Weight : 12 kg (netto)
Main Technical Data :
– Min. Flow (Q1) : 0.8 m3/h
– Transitional Flow (Q2) : 5 m3/h
– Nominal Flow (Q3) : 40 m3/h
– Maks. Flow (Q4) : 50 m3/h
– Min. Reading : 0.01 m3/h
– Maks. Reading : 999999.99 m3/h
Working Condition :
– Water Temperature : 0° C ≤ t ≤ 30° C
– Water Pressure : ≤ 1 MPa
Maximum Permissible Error :
– In the lower zone from Q1 inclusive up to but excluding Q2 is ± 5%
– In the upper zone from Q2 inclusive up to and including Q4 is ± 2%
