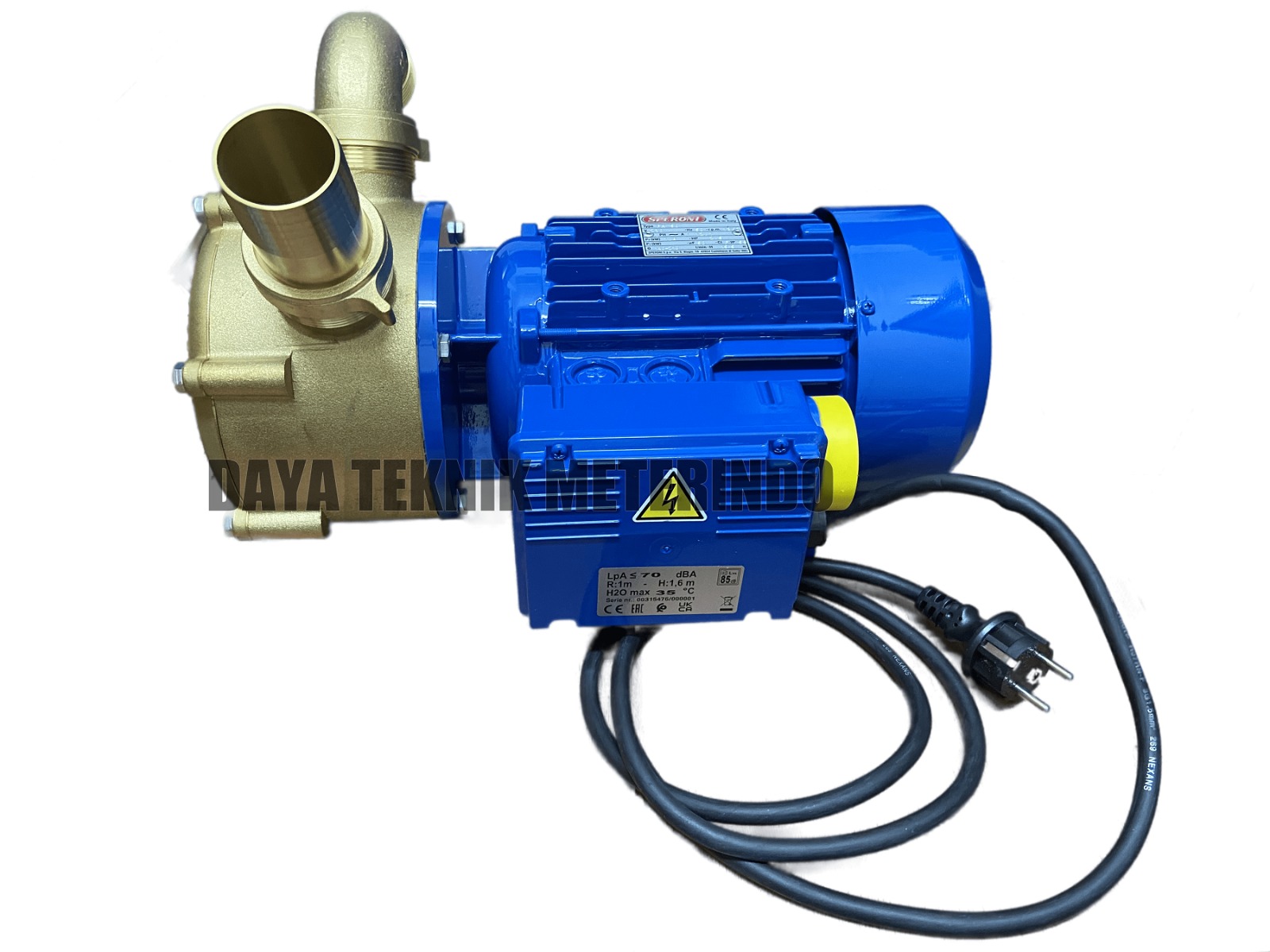

SPERONI OIL TRANSFER PUMP PM 50 / PM 500 POMPA TRANSFER OLI, SOLAR JUICE, CUKA Features OPERATING CONDITIONS
– Liquid temperature up to 35° C
– Ambient temperature up to 40° C
– Total suction lift up to 6 mt.
– Continuous duty MOTOR
– Two-Pole induction motor ( n = 2850 min-1)
– Insulation Class F – Protection IP 44 MATERIALS
– Pump body Bronze – Motor support Cast Iron – Impeller Bronze – Shaft with rotor Stainless steel – Double oil seal
Speifications Type : PM 50/ PM 500 Watt : 1000 W
Daya hisap : 9 Meter
Daya dorong : 25 Meter ;
50 l/ min ( Total Head = 23)
Kapasitas : 200 l/ min ( Total Head = 5) ; 20 l/ min ( Total Head = 25) 100 l/ min ( Total Head = 17 ) 70 l/ min ( Total Head = 21)
